Class Bias
from romda.observations import Observations
from romda.models.physical import VdP
obs = Observations(model=VdP,
t_start=2.0,
t_stop=2.5,
Nt_obs=50,
add_noise=True,
Nq=2,
noise_type='gauss, add',
noise_level=0.1,
manual_bias='linear'
)
...Applying manual bias: linear
...Adding noise: gauss, add with level 0.1.

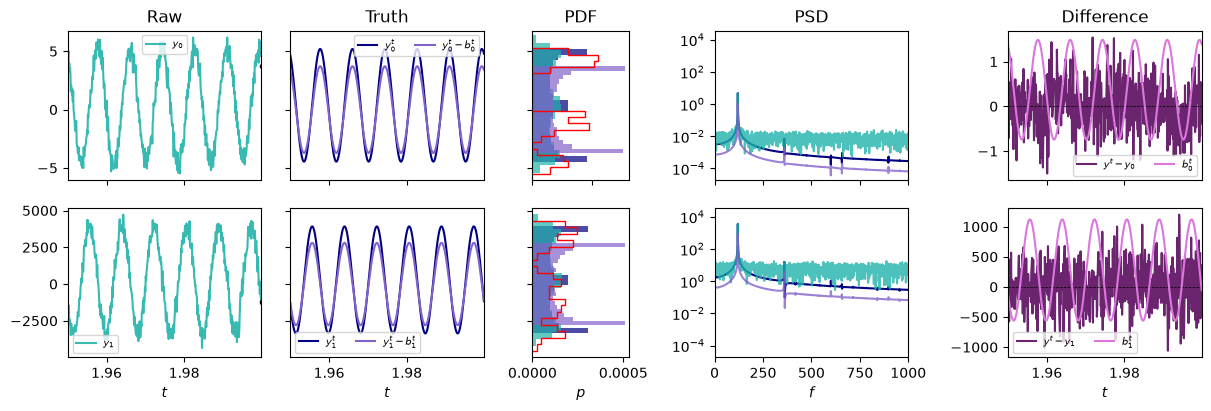

Observations.plot_truth(obs, f_max=1000, window=.05)
We want to model the truth \(y^{true}\) using a reduced order model, which may be biased. In this twin experiment case, the ROM is show in the figure above as \(y^{true}-b^{true}\).
To infer the bias \(b^{true}\) from the obsdervation data \(d\) (red dots) without knowing the truth \(y^{true}\), we need to make some assumtions. First, we will assume that we have a model of the system which gives some estimate of the system as
and the observations
where \(\varepsilon\) is noise.
ESN_bias — the workhorse used below — learns the bias dynamics with an echo state network. romda.bias_estimators also provides the simple limits ConstantBias and NoBias, useful as baselines and for filters that do not need a learned bias model.
from romda.bias_estimators import ESN_bias
from romda.utils import set_working_directories
from pathlib import Path
# First, initialize a ROM
rom = VdP(Nq=2
)
results_dir = set_working_directories('VdP')[1]
training_data_filename = Path(results_dir) / 'Tutorial_05_bias_training_data2_b'
# Then, initialize a Bias object using the ROM and the Observations
# Note: std_alpha is intentionally omitted -- this ROM has no est_alpha
# (no parameters being estimated), so std_alpha must be left as its
# default (None -> becomes an empty dict) rather than a scalar.
bias = ESN_bias(rom=rom,
reference_data=obs,
t_min=0.5,
t_max=2.0,
training_data_filename=training_data_filename,
# Parameters for training data generation (if no file found or loading fails)
std_phi=0.1,
biased_observations=False,
# Other parameters for the bias model can be added here as needed
N_units=50,
auto_save=True,
N_func_evals=20,
N_grid=4,
t_train=0.2,
t_val=0.02,
upsample=4,
N_ens=20
)
✓ Found matching config: dfb948d8e26f1930
Configuration loaded from ...config/esn_configs/dfb948d8e26f1930/esn_config.yaml
bias.print_bias_parameters()
ESN_bias
========
L = 1
augment_data_length = 2
bayesian_update = False
biased_observations = False
upsample = 4
====Forecaster model ====
Model class: ESN_model
N_units = 50
N_wash = 5
rho = 0.2
sigma_in = 1.3282792020708338
update_reservoir = True
update_state = True
upsample = 4
# test forecasting the bias
state, t = bias.time_integrate(Nt=1000)
bias.update_history(state, t)

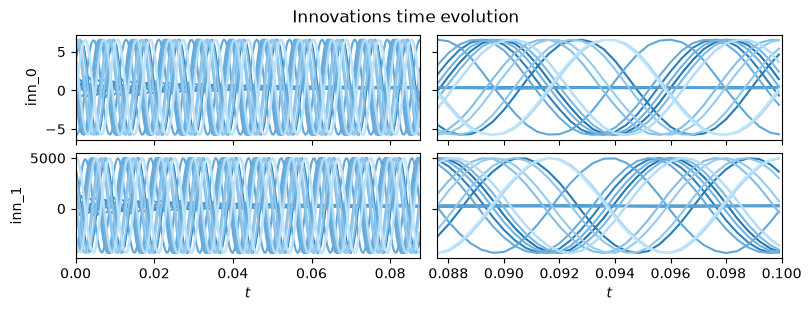

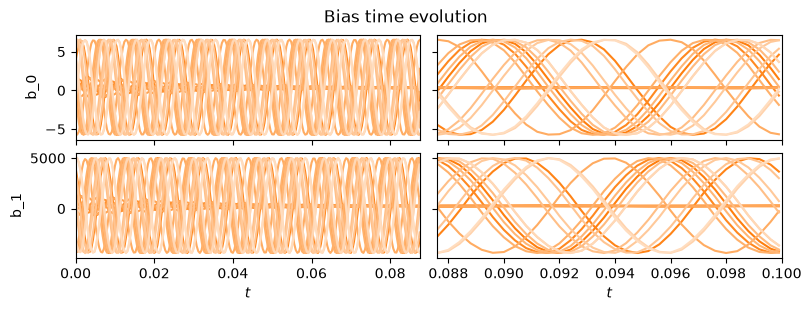

bias.visualize_bias_and_innovations()
The ESN Jacobian \(J = \mathrm{d}\mathbf{b}/\mathrm{d}(\mathbf{M}\boldsymbol{\psi})\)¶
The r-EnKF filter needs the sensitivity of the bias estimate to the observable input, \(J\), to correctly
propagate the effect of the bias correction through the Kalman gain (see rBA_EnKF in data_assimilation.py).
This Jacobian is computed analytically in closed form by the ESN (EchoStateNetwork.Jacobian, exposed via
bias.state_derivative()), since the ESN is a differentiable map (input -> reservoir -> linear readout).
Below we:
1. Compute the analytical Jacobian at the ESN's current state.
2. Estimate the same Jacobian numerically via central finite differences on the ESN's own one-step map
(esn.step), perturbing each input dimension independently.
3. Compare the two -- they should agree to a few significant figures, limited only by the finite-difference
step size and floating-point precision.
import numpy as np
esn = bias.forecaster # the trained EchoStateNetwork / ESN_model
# Use the ensemble-mean physical state and reservoir state as the point at which
# to evaluate the Jacobian (same convention as bias.state_derivative()).
current_state = bias.current_state # shape (N_dim + N_units, N_ens)
u_in = np.mean(current_state[:bias.N_dim], axis=-1, keepdims=True) # (N_dim, 1)
r_in = np.mean(current_state[-bias.N_hidden:], axis=-1, keepdims=True) # (N_units, 1)
print('Input (u) dimension:', u_in.shape[0])
print('Reservoir dimension:', r_in.shape[0])
Input (u) dimension: 2
Reservoir dimension: 50
# Analytical Jacobian: d(u_out)/d(u_in), evaluated via the ESN's closed-loop linearization
J_analytic = esn.Jacobian(open_loop_J=True, u_in=u_in, r_in=r_in)
print('Analytical Jacobian J = d(u_out)/d(u_in):')
print(J_analytic)
Analytical Jacobian J = d(u_out)/d(u_in):
[[ 1.88444846e-01 2.28549574e-05]
[-1.89135075e+01 1.61506693e-01]]
# Numerical check via central finite differences on the ESN's own one-step map.
# For each input dimension i, perturb u_in[i] by +-eps and re-evaluate esn.step(...);
# the resulting output difference approximates column i of the Jacobian.
eps = 1e-6
N_in = u_in.shape[0]
J_numeric = np.zeros_like(J_analytic)
for i in range(N_in):
u_plus, u_minus = u_in.copy(), u_in.copy()
u_plus[i] += eps
u_minus[i] -= eps
out_plus, _ = esn.step(u_plus, r_in)
out_minus, _ = esn.step(u_minus, r_in)
J_numeric[:, i] = ((out_plus - out_minus) / (2 * eps)).flatten()
print('Finite-difference Jacobian:')
print(J_numeric)
Finite-difference Jacobian:
[[ 1.88444837e-01 2.28510544e-05]
[-1.89135017e+01 1.61506250e-01]]
abs_err = np.abs(J_analytic - J_numeric)
rel_err = abs_err / (np.max(np.abs(J_analytic)) + 1e-12)
print(f'Max absolute error: {abs_err.max():.3e}')
print(f'Max relative error: {rel_err.max():.3e}')
assert rel_err.max() < 1e-3, 'Analytical and numerical Jacobians disagree beyond finite-difference tolerance!'
print('\nOK: analytical Jacobian matches the finite-difference approximation.')
Max absolute error: 5.860e-06
Max relative error: 3.098e-07
OK: analytical Jacobian matches the finite-difference approximation.

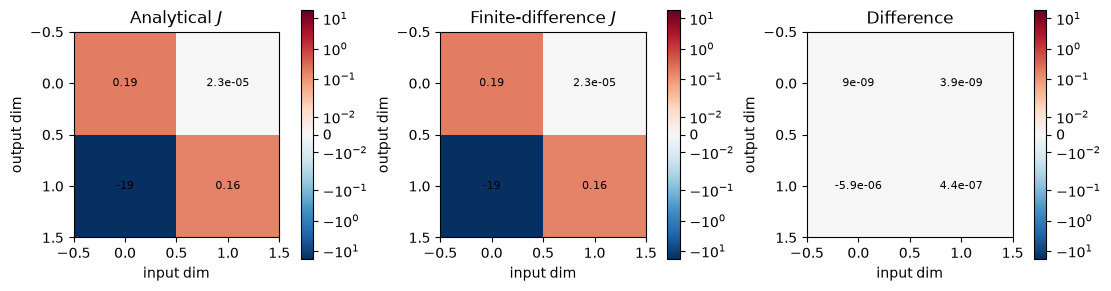

import matplotlib.pyplot as plt
from matplotlib.colors import SymLogNorm
fig, axs = plt.subplots(1, 3, figsize=(11, 3.2), layout='constrained')
vmax = np.max(np.abs(J_analytic))
norm = SymLogNorm(linthresh=max(vmax * 1e-3, 1e-8), vmin=-vmax, vmax=vmax)
for ax, mat, title in zip(axs, [J_analytic, J_numeric, J_analytic - J_numeric],
['Analytical $J$', 'Finite-difference $J$', 'Difference']):
im = ax.imshow(mat, cmap='RdBu_r', norm=norm)
ax.set_title(title)
ax.set_xlabel('input dim')
ax.set_ylabel('output dim')
for (r, cix), val in np.ndenumerate(mat):
ax.text(cix, r, f'{val:.2g}', ha='center', va='center', fontsize=8)
plt.colorbar(im, ax=ax, shrink=0.8)
Relating this to bias.state_derivative()¶
bias.state_derivative() is what the r-EnKF filter actually calls during the analysis step
(see EnsembleEstimator.analysis_step in estimators/ensembles.py). It wraps the raw ESN Jacobian above: it selects the
rows/columns corresponding to bias.bias_idx and returns the negative transpose of that sub-matrix
(matching the sign convention \(\mathbf{y}=\mathbf{q}+\mathbf{b}\) used in the filter's cost function).
J_filter = bias.state_derivative()
print('J used inside the DA filter (bias.state_derivative()):')
print(J_filter)
# Reproduce it directly from the raw ESN Jacobian to confirm the relationship:
bias_idx = np.array(bias.bias_idx)
J_from_raw = -J_analytic[bias_idx, :][:, bias_idx].T
print('\nReconstructed from the raw ESN Jacobian (-J[bias_idx][:,bias_idx].T):')
print(J_from_raw)
assert np.allclose(J_filter, J_from_raw)
print('\nOK: matches bias.state_derivative() exactly.')
J used inside the DA filter (bias.state_derivative()):
[[-1.88444846e-01 1.89135075e+01]
[-2.28549574e-05 -1.61506693e-01]]
Reconstructed from the raw ESN Jacobian (-J[bias_idx][:,bias_idx].T):
[[-1.88444846e-01 1.89135075e+01]
[-2.28549574e-05 -1.61506693e-01]]
OK: matches bias.state_derivative() exactly.
